Dampers & Gates

Dampers and Gates

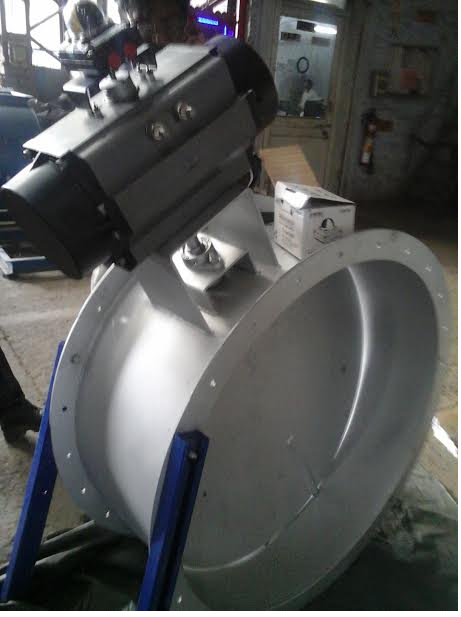

BUTTERFLY DAMPER
  • On/off type control using single blade or dual position.
  • For round duct – for small to medium dia. upto ~ 800mm
  • With manual operation or by actuator.
  • Can be designed with higher sealing efficiency ~99.5% on CSA.

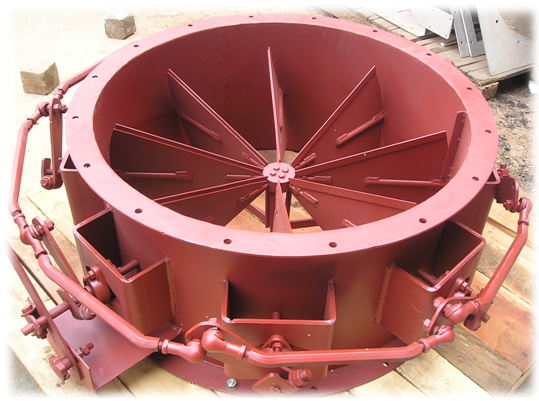

IGV(INLET GUIDE VANE) DAMPER
  • Regulating type control using multi blades.
  • For round duct – for bigger dia.from ~450mm to ~1500mm
  • With manual operation or by actuator.
  • Can be designed with higher sealing efficiency ~98% on CSA.

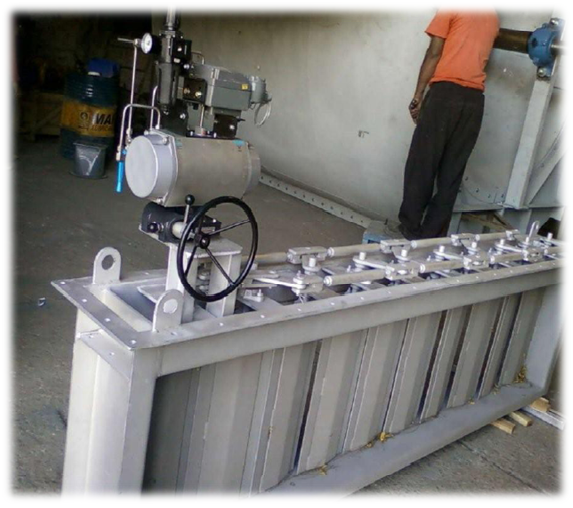

MULTI-LOUVER DAMPER
  • Regulating type control using multi blades can be parallel or opposite.
  • for square/rectangular duct-for medium to bigger size(~2000mm X 1300mm)
  • With manual operation or by actuator.
  • Can be designed with higher sealing efficiency ~99.95% on CSA.

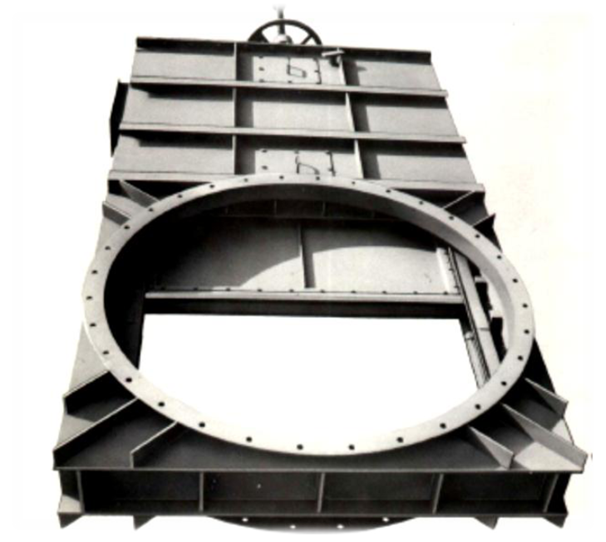

GUILLOTINE GATE
  • On/off type control using single blade with gate type heavy construction.
  • For round/square/rectangular duct-for medium to bigger size
  • Generally operates with Electrical/pneumatic actuator.
  • Can be designed with higher sealing efficiency ~99.95% on CSA w/o seal air and with seal air fan upto 100% at ~2000 mmWC with ~700 deg.C.
